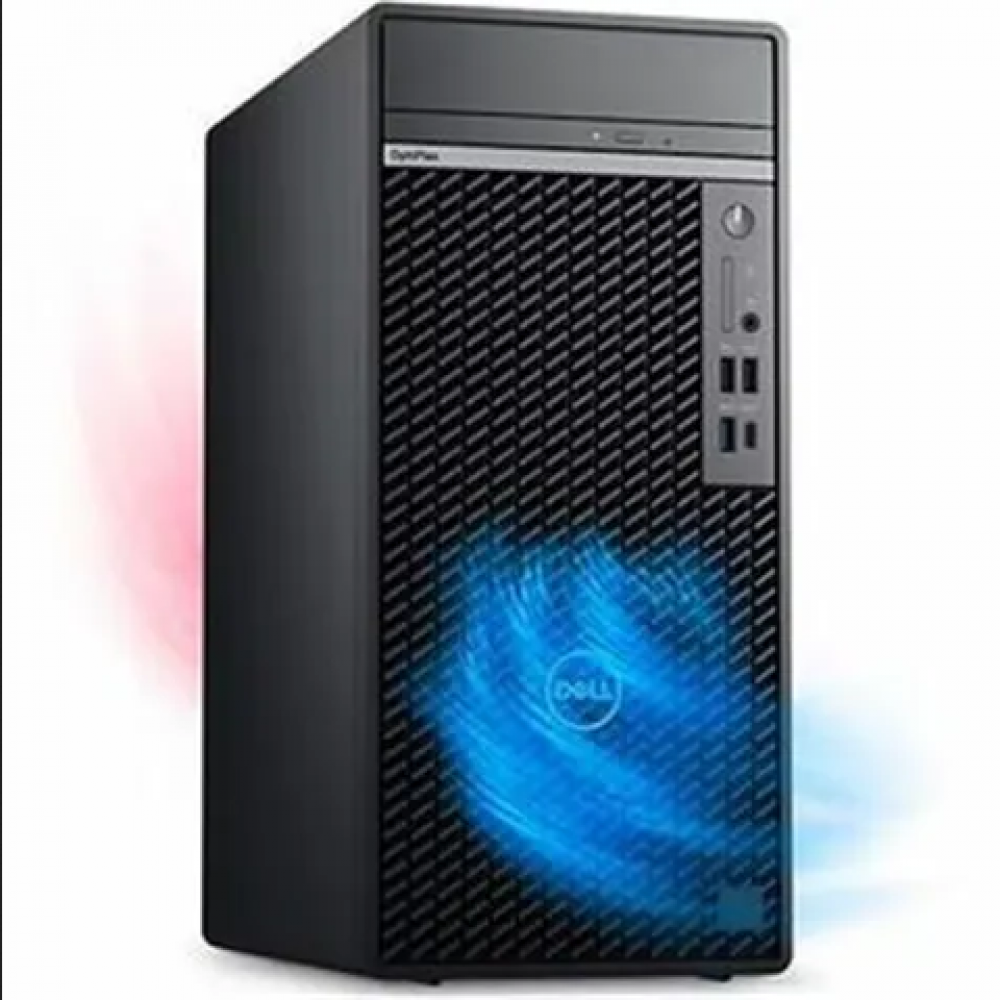

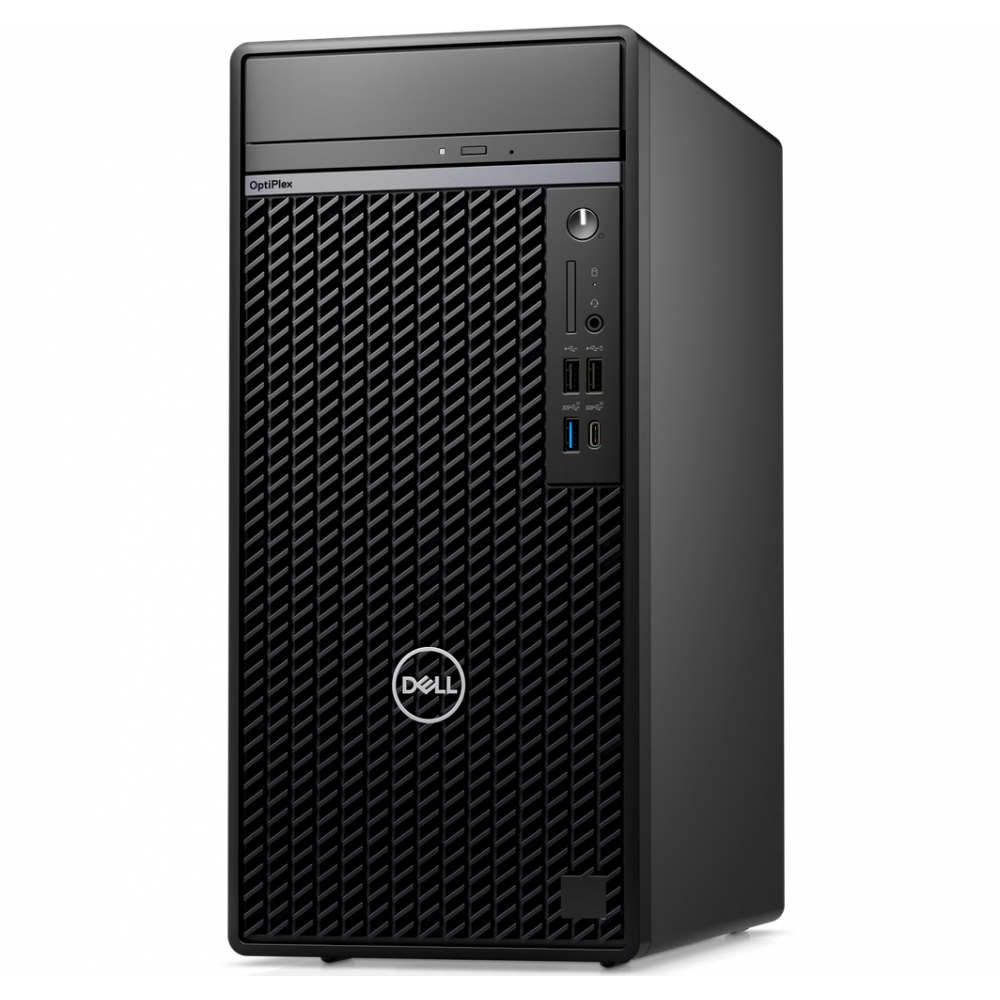

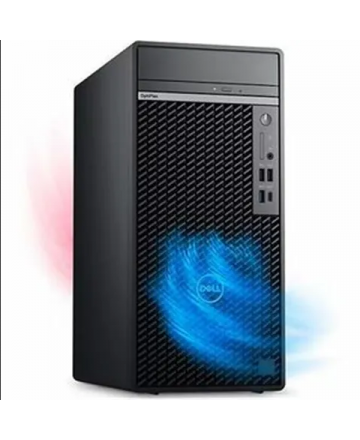

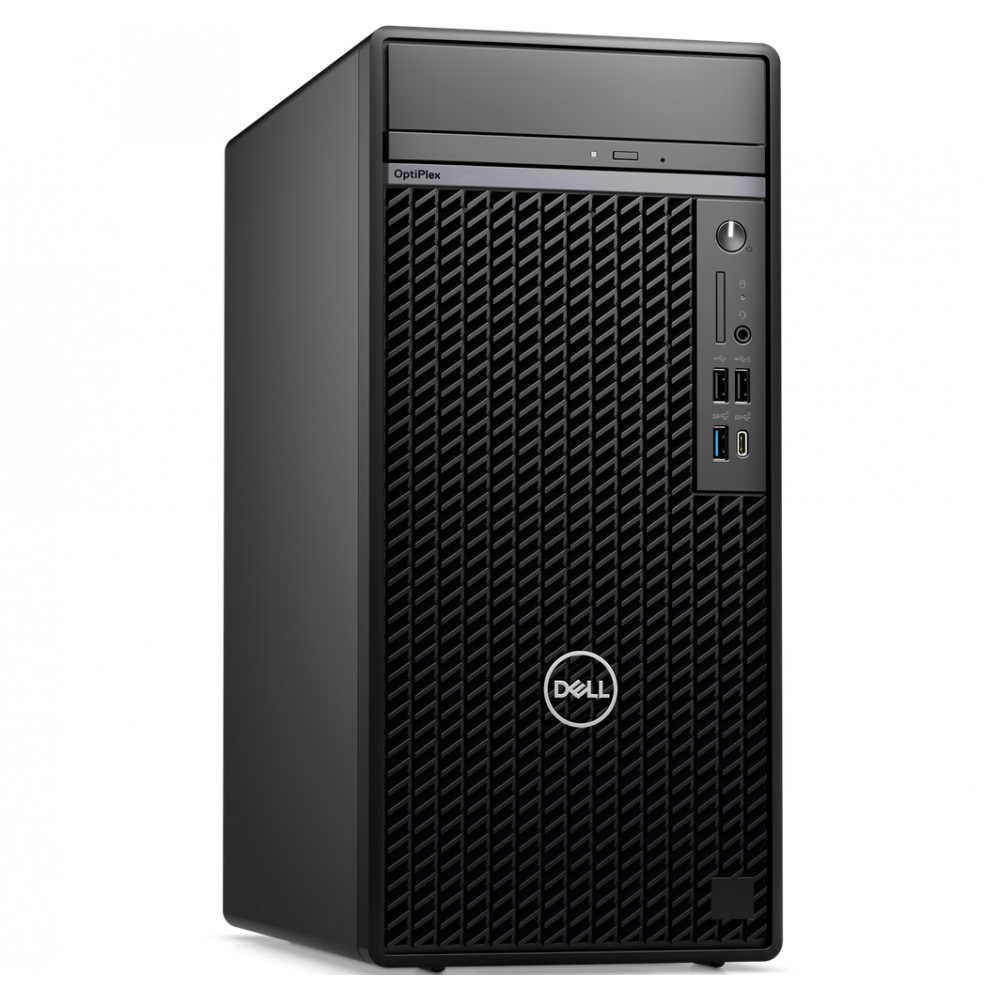

Dell Optiplex 7020 Tower Plus, i7-14700,8GB,512, DVD, 500W,11 Pro, 3YRS PRO, 12AO 4F71B94, 10559

Description
Specification

IResources

Intelligence meets simplicity

Intelligent desktops for every workstyle.

Find your OptiPlex in just two steps: Select your form factor, then choose the right features for the job.
Simplified management: Our new OptiPlex desktops with Intel^® Core™ processors (14th gen) feature one BIOS for All-in-Ones and one BIOS across Towers, Small Form Factors and Micro Form Factors.

Which OptiPlex configuration is right for you?

OptiPlex Towers provide ultimate desktop configurability with the most storage and expansion options. Built to engage with rich content, Towers offer the most performance and graphics options for immersive productivity. Here are the key differences:

Compare base configurations in 3D

Tower

Features up to AMD RX 6500, one native HDMI and one native DisplayPort, one M.2 SSD slot and three PCIe expansion slots.

Tower Plus

Features up to NVIDIA RTX 4060, three native DisplayPorts, three M.2 SSD slots and four expansion slots.

Dive into rich user experiences

Future-ready DDR5 memory

Up to 128GB DDR5 with speeds up to 5600 MT/s means more multitasking capabilities and smoother transitions between applications

Improved thermals and acoustics

New thermal options allow you to set the system in quiet mode.

Expanded image of Optiplex Desktop showing system internals.

Discrete graphics

Enjoy a smooth viewing experience, free of refresh interruptions.

OptiPlex Tower in standard and plus configurations.

Get the most out of your OptiPlex

Supports 4 displays: Integrated graphics support for up to 4 simultaneous displays with up to 4K resolution

.

Stunning views: Experience 5K resolution with optional DisplayPort.

Immersive content: Next generation discrete graphics, ready for graphic intense workloads and rich content

.

Stay in your flow: Work without interruption with devices that seamlessly connect and interact. Your OptiPlex workspace pairs perfectly with Dell Wireless Headset, Dell Speakerphone and Dell UltraSharp webcam.

Enhancements that lead to advancements

One BIOS

Our new OptiPlex desktops with Intel^® Core™ processors (14th gen) feature one BIOS for All-in-Ones and one BIOS across Towers, Small Form Factors and Micro Form Factors.

desktops-optiplex-d13-5-illustrations-processor.psd

Intel® Core™ processors (14th Gen)

Engineered to increase your productivity.

Dell Optimiser Built-in AI

Intuitive, personalised productivity.

desktops-optiplex-d13-5-illustrations-reliable.psd

Modern management and reliability

OptiPlex invests in reliable product experiences designed with quality-tested, sustainable components built to last and perform.

Modern device management

Protect endpoints, optimise the health & performance across devices, and enhance productivity.

Single BIOS strategy: OptiPlex makes it easier for IT admins to manage numerous devices. OptiPlex offers one BIOS for All-in-Ones, and one BIOS across Towers, Small Form Factors and Micro Form Factors.

Dell Manageability Solutions: Designed to allow IT admins to deploy drivers, configure BIOS, monitor devices, and manage updates - reliably and easily, all while integrating with existing endpoint management solutions. Dell offers the industry’s first Binary Large Object (BLOB) package-based solution, for securely configuring & managing endpoints, using Microsoft Intune

.

Dell Trusted Update Experience: All new offering simplifies the update experience for your fleet of devices. We package the latest BIOS, drivers, and firmware versions for our customers – with Dell-exclusive capabilities.

Dell Trusted Devices

Reduce the Attack Surface of Your Fleet with OptiPlex.

OptiPlex is a part of the industry’s most secure commercial PC

family from Dell, with built-in security features that keep you protected and give you visibility to threats for swift action. OptiPlex customers trust our secure desktop solutions, featuring TPM 2.0, lockable cable covers and mounts, smart authentication options and chassis intrusion switches (available on select configurations).

Be secure from first boot: Rigorous, state-of-the-art supply chain controls and Dell-unique Secured Component Verification reduce the risk of product tampering.

Stay protected from evolving threats: Only Dell offers off-host BIOS and firmware verification, providing greater security than other PCs. Comprehensive security support further minimises the risk of attack in-use.

Early-alert threat detection: Indicators of Attack, an early-alert feature offered only by Dell, scans for behavior-based threats before they can do damage, e.g., BIOS attacks, chassis intrusion.

Safeguard user credentials: Our unique security chip offers an extra, hardware-based layer of security against credential theft.

Dell Optimizer

Personalised performance that automatically responds to your workstyle, with advanced privacy features and built-in AI that optimises audio, connectivity, productivity and configurability, all in one software.

Features and dashboard vary by model.

Discover More

Download Dell Optimizer

Advancing Sustainability

Our use of sustainable materials helps reduce the environmental impact of making and recycling them. OptiPlex desktops are made with up to 56.7% recycled plastic

, including ITE-derived closed loop plastic. Select OptiPlex desktops are certified ENERGY STAR^® 8.0, carry TCO Generation 9 certifications, and are EPEAT Gold registered with Climate+ designations. With Climate+, these desktops have met the industry's best practices for decarbonisation

Accelerate business success with Copilot and Windows 11 Pro

Industry-leading AI. Powerful cybersecurity. Designed for business.

AI-powered multi-tasking mastery for a new way of working with Windows 11 Pro. With features like Copilot in Windows

, get better answers, grow your skills, and effortlessly optimize workflows. Windows 11 Pro on Dell PCs come with the latest advances in security and AI delivered conveniently to your desktop. Benefit from AI-enhanced efficiency, performance, and security today, and innovate to take on new challenges tomorrow.

Learn More

Smiley man wearing glasses with a headset on his head using a Dell monitor.

IT made simple

Upgrade your employee experience with our flexible device and lifecycle solutions, available for a predictable monthly price.

Dell APEX Managed Device Service: Easily scale your new Dell devices with this all-inclusive subscription designed to relieve the burden of day-to-day support and PC management. Learn More

Dell APEX PC-as-a-Service: Modernise your IT department with customisable plans on hardware and lifecycle solutions with no upfront investment, flexible terms, and a predictable monthly payment. Learn More

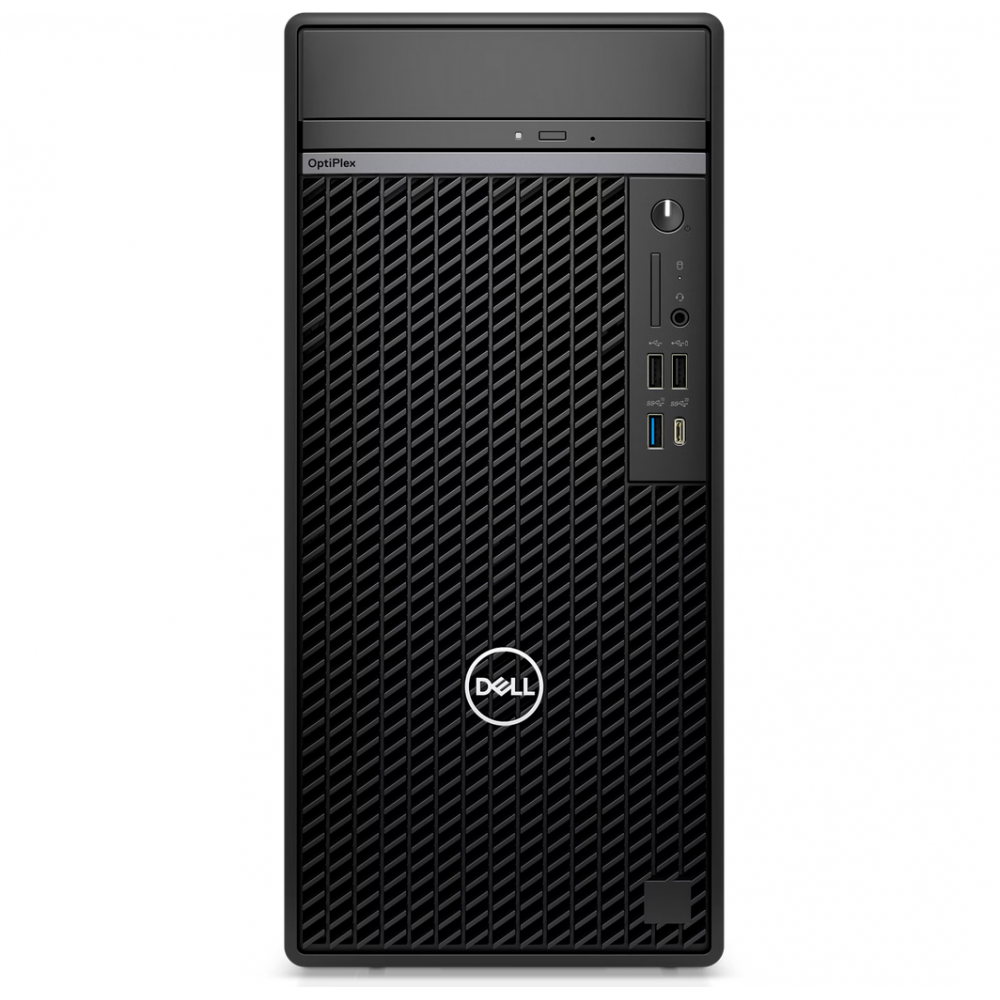

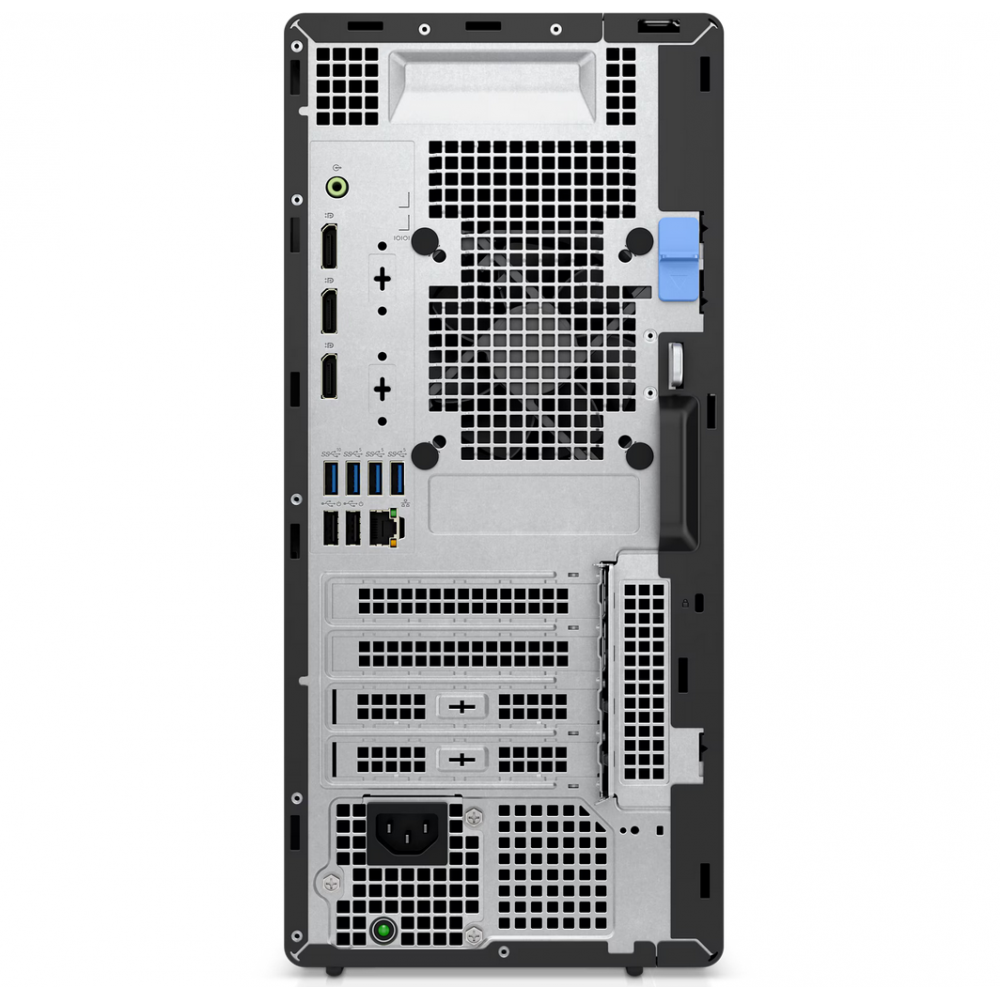

The front and back of the OptiPlex Tower with the ports and slots labeled.

Ports & Slots

1. Optical Disc Drive (optional)
2. Power Button
3. Storage Activity Light
4. SD Card Slot (optional)
5. Universal Audio Jack
6. USB 2.0 Port
7. USB 2.0 Port with PowerShare
8. USB 3.2 Gen 2 Port
9. USB 3.2 Gen 2x2 Type-C Port

10. Re-tasking Line-out/Line-in Audio Port
11. Serial Port (optional)
12. 3x DisplayPort 1.4a Ports (each up to 4096 x 2304 @60Hz)
13. Video Port (optional)

HDMI 2.1: up to 4096 x 2160 @60Hz
DisplayPort 1.4a: up to 5120 x 3200 @60Hz
VGA: up to 1920 x 1200 @60Hz
USB Type-C with DisplayPort Alt mode: up to 5120 x 3200 @60Hz

14. USB 3.2 Gen 2 Type-A Port
15. 3x USB 3.2 Gen 1 Type-A Port
16. 2x USB 2.0 with SmartPower On
17. 4x Expansion Slots
18. Power Cord Connector
19. Power Supply Diagnostic Light
20. Release Latch
21. Padlock Ring
22. RJ-45 Ethernet
23. Kensington Security Cable Slot

The OptiPlex Tower with the dimensions highlighted.

Dimensions & Weight

1. Height: 14.45 in. (367.00 mm)
2. Depth: 11.84 in. (300.80 mm)
3. Width: 6.65 in. (169.00 mm)

Weight (min): 13.07 lbs. (5.93 kg)

Weight (max): 21.24 lbs. (9.63 kg)

Processor
Processor(s)	DELL OPTIPLEX 7020 TOWER PLUS - 500 W PSU * DELL 3 YEARS PRO SUPPORT NBD ON SITE 1) Hardware support 2) Next Business Day onsite or Advanced Exchange Service after remote diagnosis 3) Crisis monitoring & management 4) Direct access to in-region engineers 5) Single-source software & hardware expertise 5.4GHZ Intel Core i7-14700 (20Cores, 28 Threads (HT), 33 Mb Cache, Up to 5.4GHZ) Memory 8GB (1X8GB) Up to 5600MHz DDR5 UDIMM Non-ECC Storage 512GB PCIe M.2 NVMe Gen 4 Class 35 Solid State Drive Optical 8x DVD+/-RW 9.5mm Drive Graphics: Intel Integrated Graphics Additional HDMI 2.0b Video Port O/S Windows 11 Pro Power Tower Plus with 500W Platinum Power Supply Dell KB212-B UK English Wired Black Keyboard & Mouse Factory Remanufactured
Other Information
Standard Specs And Options	OPERATING SYSTEMS SUPPORTED Windows 11 Home Windows 11 Pro Windows 11 Pro National Education Ubuntu® Linux® 22.04 LTS PORTS Front: 1 USB 2.0 (480 Mbps) port with PowerShare 1 USB 2.0 (480 Mbps) port 1 USB 3.2 Gen 2x2 (20 Gbps) Type-C® port 1 USB 3.2 Gen 2 (10 Gbps) port 1 Universal audio port Rear: 3 USB 3.2 Gen 1 (5 Gbps) ports 3 DisplayPort™ 1.4a ports 2 USB 2.0 (480 Mbps) ports with SmartPower On 1 USB 3.2 Gen 2 (10 Gbps) port 1 RJ45 (1 Gbps) Ethernet port 1 Retaskable line-in/line-out audio port 1 Video port (HDMI 2.1/DisplayPort™ 1.4a/VGA/USB 3.2 Gen 2 (10 Gbps) Type-C® port with DisplayPort™ Alt Mode) (optional) 1 Serial port (optional) SLOTS 4 SATA 3.0 slots for Hard Disk Drive and Optical Disc Drive; ODD supports SATA 2.0 3 M.2 2230/2280 slots for solid-state drive 1 Full-height Gen4 PCIe x16 slot 1 Full-height Gen3 PCIe x4 open-end slot 1 Full-height Gen3 PCIe x1 slot 1 Full-height PCI slot 1 M.2 2230 slot for WiFi and Bluetooth combo card 1 SD-card 4.0 slot (optional) ADD IN CARD OPTIONS USB Type-C® 3.2 Gen 2 (10 Gbps) PCIe Card, Full Height Serial/Parallel Port Card, Full Height I226 PCIe x1 2.5 GbE NIC card Powered Serial PCIe card USB 3.2 Gen 2 PCIe Card, Full Height Powered USB PCIe Card (Full Height, 1x 24V, 2x 12V) Thunderbolt PCIe card PS/2 and Serial port card, Full Height GRAPHICS OPTIONS Integrated Graphics: Intel® UHD Graphics 730 for Intel® Core™ i3-14100 processor (14th Gen) Intel® UHD Graphics 770 for Intel® Core™ i5-14500 vPro®, i5-14600 vPro®, i5-14600K vPro®, i7-14700 vPro®, i7-14700K vPro®, i9-14900 vPro® and i9-14900K processors (14th Gen) Discrete Graphics: AMD Radeon™ RX 6300, 2 GB GDDR6 AMD Radeon™ RX 6500, 4 GB GDDR6 NVIDIA® GeForce® RTX™ 4060, 8 GB GDDR6 MEMORY OPTIONS 8 GB: 1 x 8 GB, DDR5, 4400 MT/s, UDIMM, single-channel 16 GB: 1 x 16 GB, DDR5, 4400 MT/s, UDIMM, single-channel 16 GB: 2 x 8 GB, DDR5, 4400 MT/s, UDIMM, dual-channel 32 GB: 1 x 32 GB, DDR5, 4400 MT/s, UDIMM, single-channel 32 GB: 2 x 16 GB, DDR5, 4400 MT/s, UDIMM, dual-channel 32 GB: 4 x 8 GB, DDR5, 4000 MT/s, UDIMM, dual-channel 64 GB: 2 x 32 GB, DDR5, 4400 MT/s, UDIMM, dual-channel 64 GB: 4 x 16 GB, DDR5, 4000 MT/s, UDIMM, dual-channel 128 GB: 4 x 32 GB, DDR5, 3600 MT/s, UDIMM, dual-channel STORAGE OPTIONS 512 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 25 1 TB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 25 2 TB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 25 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 35 512 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 35 1 TB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 35 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 35 512 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40 1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40 2 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40 512 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 40 1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 40 4 TB, 5400 RPM, 3.5-inch, SATA, HDD 1 TB, 7200 RPM, 3.5-inch, SATA, HDD 2 TB, 7200 RPM, 3.5-inch, SATA, HDD WIRELESS OPTIONS Intel® Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card Realtek Wi-Fi 6 RTL8852BE, 2x2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card POWER OPTIONS 260W 80 PLUS Bronze internal power supply unit 500W 80 PLUS Platinum internal power supply unit DIMENSIONS Height: 14.45 in. (367.00 mm) Width: 6.65 in. (169.00 mm) Depth: 11.84 in. (300.80 mm) Weight (Minimum): 13.07 lb (5.93 kg) Weight (Maximum): 21.24 lb (9.63 kg) OptiPlex Tower Plus and OptiPlex Tower (available for all configurations) DELL OPTIMIZER (INCLUDED) Application Optimization Machine learning models designed to improve foreground application performance and boost overall application responsiveness when PC is under high CPU utilization from concurrent workload activities. Power Optimization Choice of settings (optimized, cool, quiet, ultra performance) to balance PC performance and fan noise. Will also provide critical firmware alerts and notifications. Intelligent Audio AI-based neural noise technology removes intrusive sounds, echos, and reverb caused by room acoustics from all ends of conference calls as well as mutes all background noises when no speech is detected. Will also provide automated tuning for optimized sound quality and on-screen notifications if voice quality drops in conference calls. Presence Detection: Presence Detection is built-in for OptiPlex All-in-One with optional 5MP IR Camera; all other OptiPlex desktop configurations require external device with a compatible sensor, including select Dell monitors and webcams with proximity sensors to experience these features. “Keep Alive” will prevent screen from turning off; “Walk Away Lock” will turn off screen and lock system; and “Wake on Approach” will awaken system, all based on user presence, providing screen privacy while conserving energy consumption. Network Optimization Automatically switches to the best available Wi-Fi network when congestion is detected and uses multiple wired or wireless network connections to transfer data and improve download speed. Allocates the maximum bandwidth to conference application when you are on a call and allows you to prioritize which applications receive the most bandwidth when the network is congested Intelligent Ecosystem Convenient access to Dell Peripheral Manger and Dell Display Manager for customization settings and controls for your Dell Peripherals and your Dell Monitor.

Tag Number: 12AO 4F71B94
Stock ID: 10559
Availability: In Stock

£862.80£1,256.40
£719.00 Ex VAT @ 20%
